1. Passed CE,FCC,ROHS,IP55 certification
2. With rain proof design
3. Unique digital filter circuit design,strong anti false alarm ability
4. With high levels of anti-RFI/EMI capability
5. Fully sealed design,rain-proof(fog),dust-proof(worm),suitable for hostile environment
6. The product is suitable for access control system,home intruder alarm system. Installation place:door,window,passage,barriers
and so on.
7. 12v to 24v wide voltage design,can be used with kinds of alarm panel and access control system.
8. Detecting distance 20m
Specification for Single Infrared Beam Sensor |
Model | ABO-20L |
Working voltage | DC 12v to 24v |
Working current | R - 15mA ; T - 30mA |
Installation | Outdoor/Indoor |
Usage | Alarm/Access Control System |
Certificate | CE certificated |
Detecting distance | 20m |
Frequency | 1.92KHz |
Wave length | 940nm |
Working temperature | -25℃~+55℃ |
Alarm Output | NC NO; 1A/36V Max |
Waterproof grade | IP55 |
Dimension | 49.2*75.3*29.6mm |
Packing Details for Single Infrared Beam Sensor |
PACKING | Neutral color box or customer's packing |
PCS/CARTON | 200PCS |
GW/CARTON | 24KG |
CARTON SIZE | 49.5*48*36 cm |
Automatic Sliding Door Photo cell Sensor

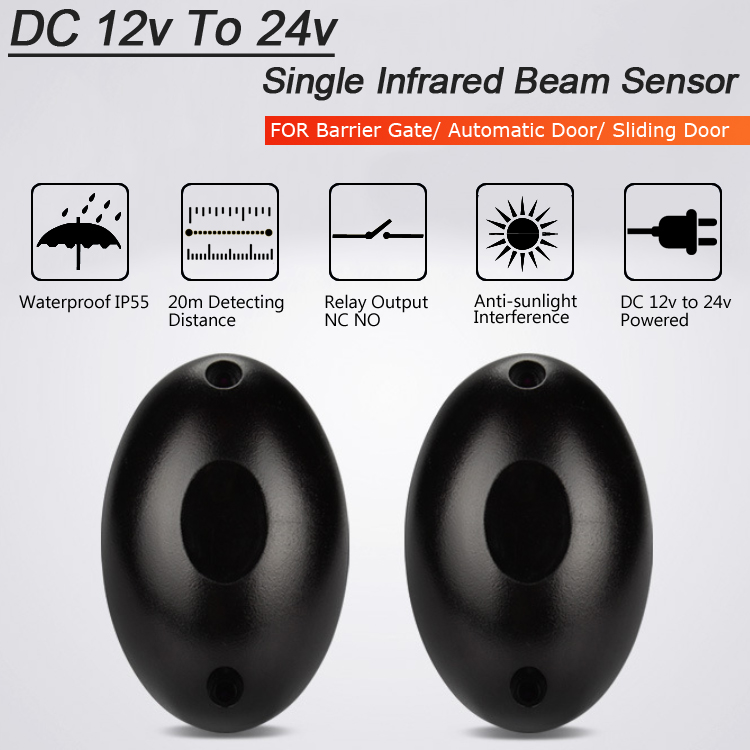

Waterproof IP55 / 20 Meters Detecting Distance Relay Output NC/NO / Good Ability To Resist Sunlight Interference

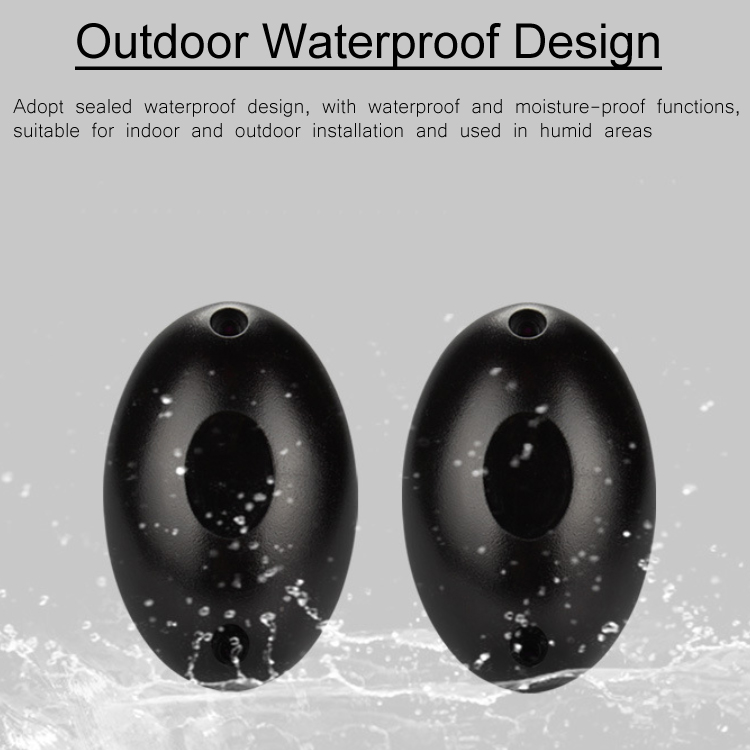

Outdoor Waterproof Design
Adopt sealed waterproof design, with waterproof and moisture-proof functions suitable for indoor and outdoor installation and used in humid areas

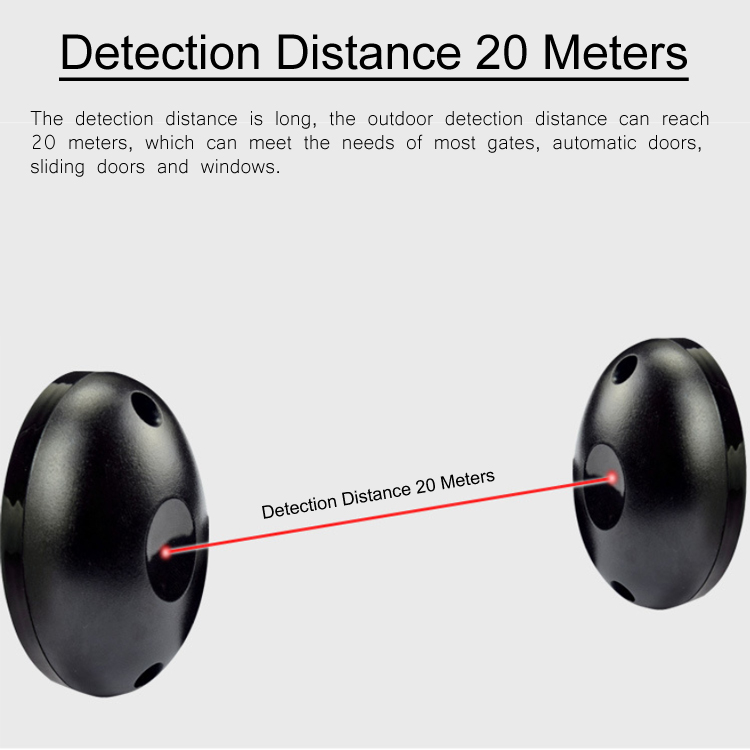

Detection Distance 20 Meters
The detection distance is long,the outdoor detection distance can reach 20 meters,which can meet the needs of most gates,automatic doors,sliding doors and windows

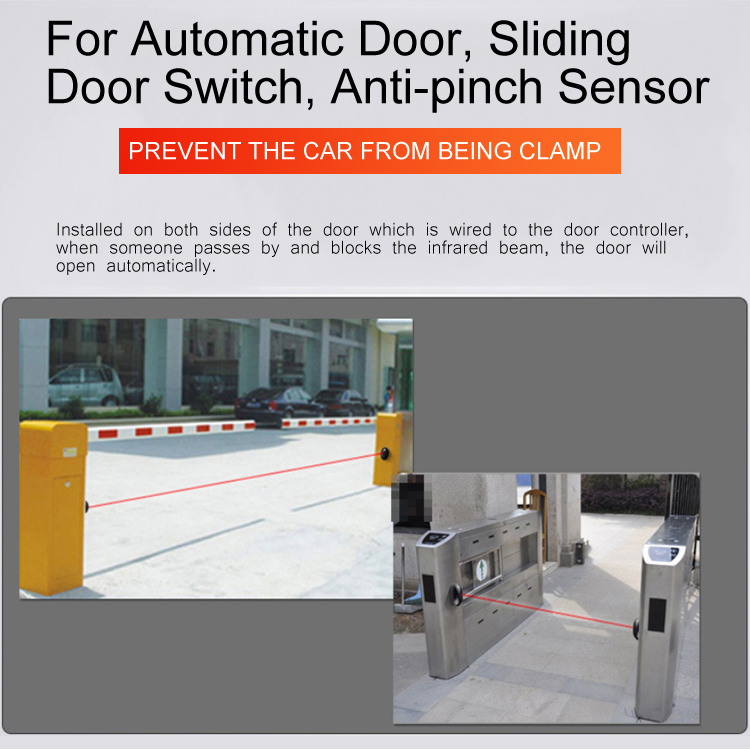

For Automatic Door,Sliding Door Switch, Anti-pinch Sensor
Installed on both sides of the barriers which is wired to the barrier controller. When someone or a vehicle interrupts the beam, the controller will control the ups and downs or opening of the barrier automatically, prevent the car from being clamp
