Perimeter Beams

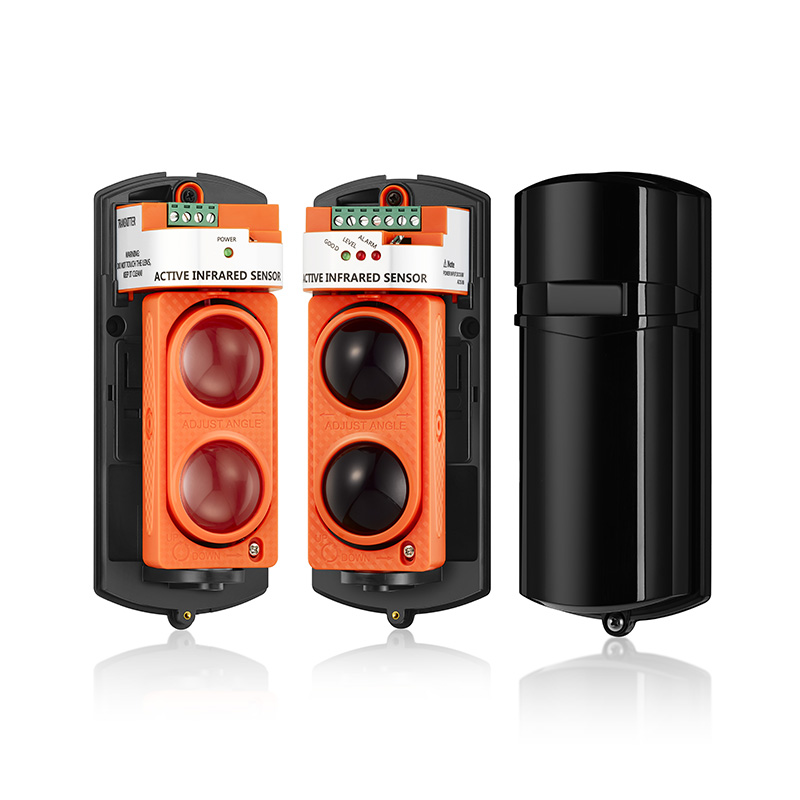

ABT-150S Perimeter Security Beams Alarm System Home Garden Fence Perimeter Defence Alarm Beam Sensor

Product Attribute

Model Number:ABT-150S
Brand Name:BONLOR
Power and Voltage:DC 12-24V
Beam:2 Beam
Detection Range:30-150 m
Material:ABS
Light source:Infrared LED

Type:

Outdoor waterproof active infrared beam detector
Economical photoelectric ir beam sensor 150m

Product Description:

* Multifunctional: This alarm is multifunctional with intrusion alarm functions such as anti tampering, anti cord cutting, and anti infrared interference.* Wide Application: This alarm is suitable for villas, factories, neighborhoods, school fences to install to prevent strangers from invading the alarm. * IP65 Protection : This alarm is IP65 protection, which can be waterproof and dustproof, and can be used in many situations.*Excellent ABS Material: This alarm is made of excellent ABS material, which has the features of high density, high temperature resistance, strong toughness, UV resistance and so on. * Intelligent Detection Technology: This alarm uses intelligent detection technology to recognize small animals passing through without alarming.

The infrared beam detector is commonly used for window/door or fence protection. Once the two beams are interrupted in the same time, the alarm will be triggered, reducing false alarm caused by small animals and fallen leaves.

Specification

Model	ABT-30m	ABT-60m	ABT-80m	ABT-100m	ABT-150m
Detecting Distance	30m	60m	80m	100m	150m
Detecting Way	2 infrared beams are interrupted at the same time
Voltage	AC12-18V / DC12-24V
Current	85mA max
Detection Speed	50-700ms
Alarm Output	Relay output 1C, output capacity: AC/DC24V 3Amax
Tamper Output	Contact output:1B (COM NC),contact capacity AC/DC 30V 0.5A max
Water-proof Level	IP 65
Operating Temperature	-25℃- 55℃
Working Humidity	95% max
Adjustment Angle	Horizontal 180°（±90°），Vertical 20°（±10°）
Installation Method	indoor/outdoor,wall mounted/pole mounted
Material	PC(Cover) + ABS(Shell)
