Type:

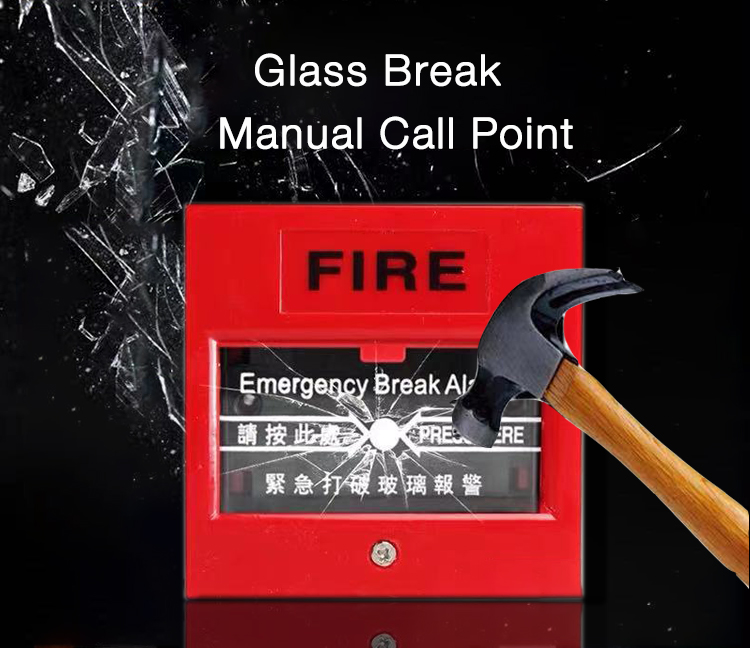

Glass break call point
Break glass emergency alarm
Conventional fire alarm manual call point
Product Description:
Suitable for fire alarm, access control, alarm system, exit doors
Strong stability, can be recycling used

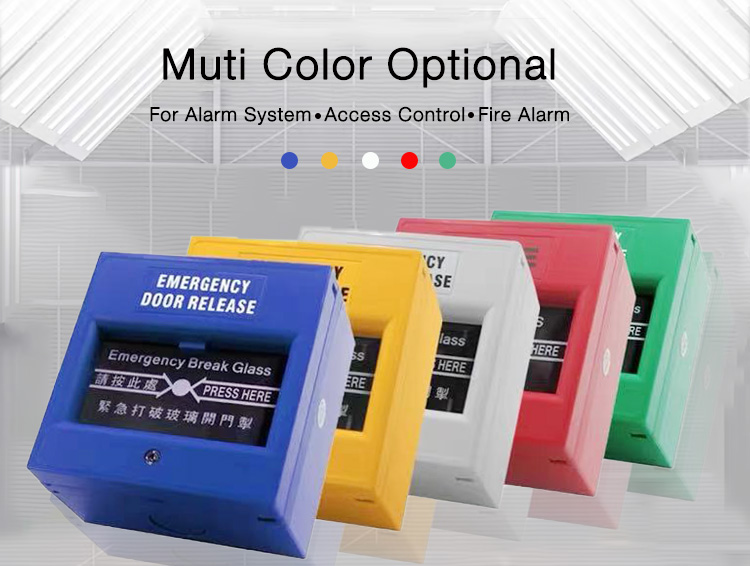

Housing color optional,red/blue/orange/white/green

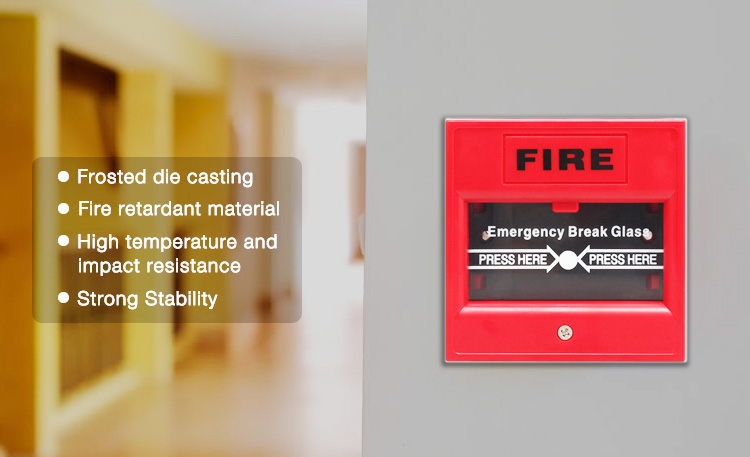

Fire resistant ABS material, easy installation

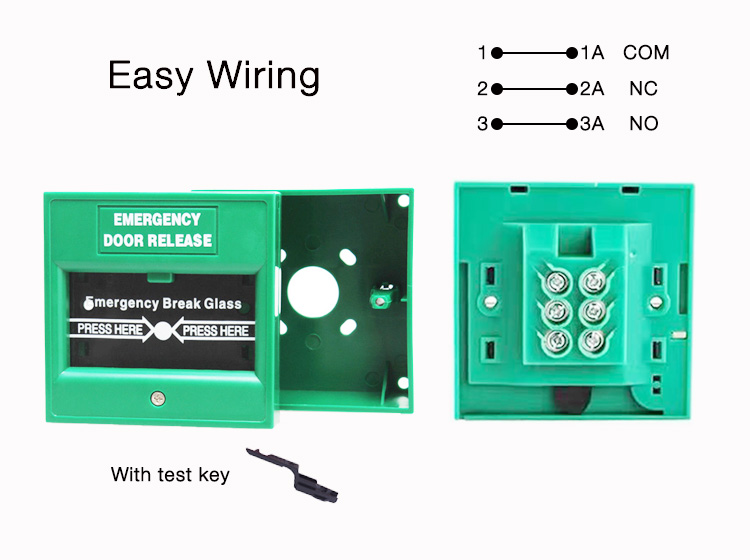

NO, NC, COM terminal for cable connection

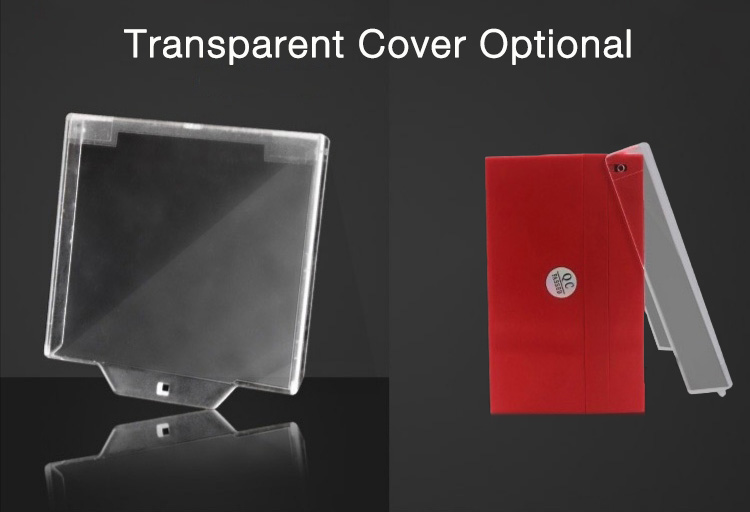

Transparent front cover selectable

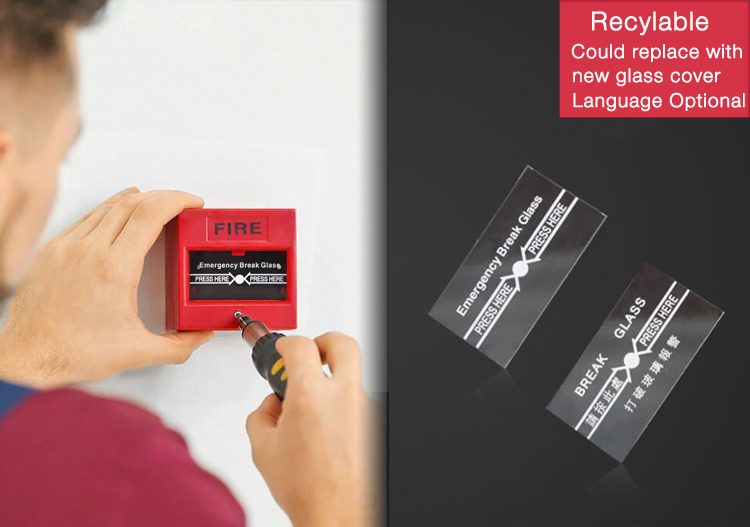

Break glass can be replaced easily
Language on the break glass is optional
Characteristic:

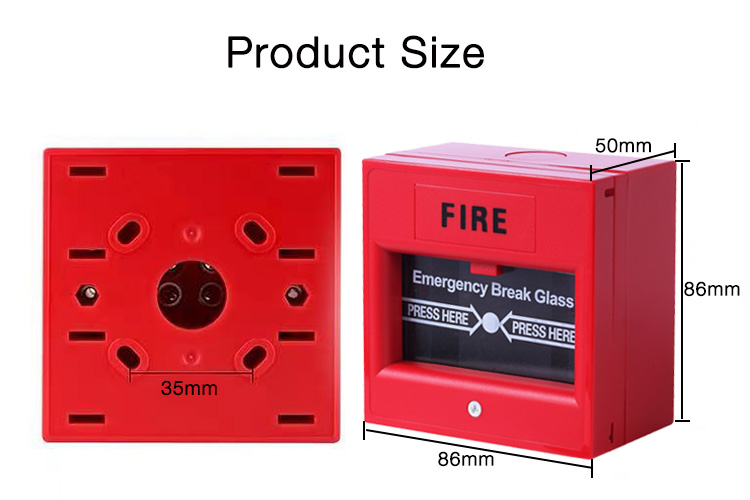

*Size: 86*86*50 mm, wall mounting or inserted
Manual alarm call points are designed for the purpose of raising an alarm manually once verification of a fire or emergency condition exists, by operating the push button or break glass the alarm signal can be raised.
The call point should be mounted 1.4m from the floor and sited where they can be easily seen. Once the glass is broken, the glass can be replaced for cycling application.
Item | Fire alarm manual call point |
Model | SF-109 |
Voltage | 12V/24V |
Max.Current | 1A |
Output Contact | NO/NC/COM |
Operating Temperature | -10℃~65℃ |
Working Humidity | 10%-90% |
Optional Colors | Red,Green,Yellow,Blue,White |
Optional Accessories | Transparent Plastic Cover |
Material | ABS Fire Retardant Material |
Installation | Wall mounted with screws |
Dimension | 86*86*50mm |
