Introduction:

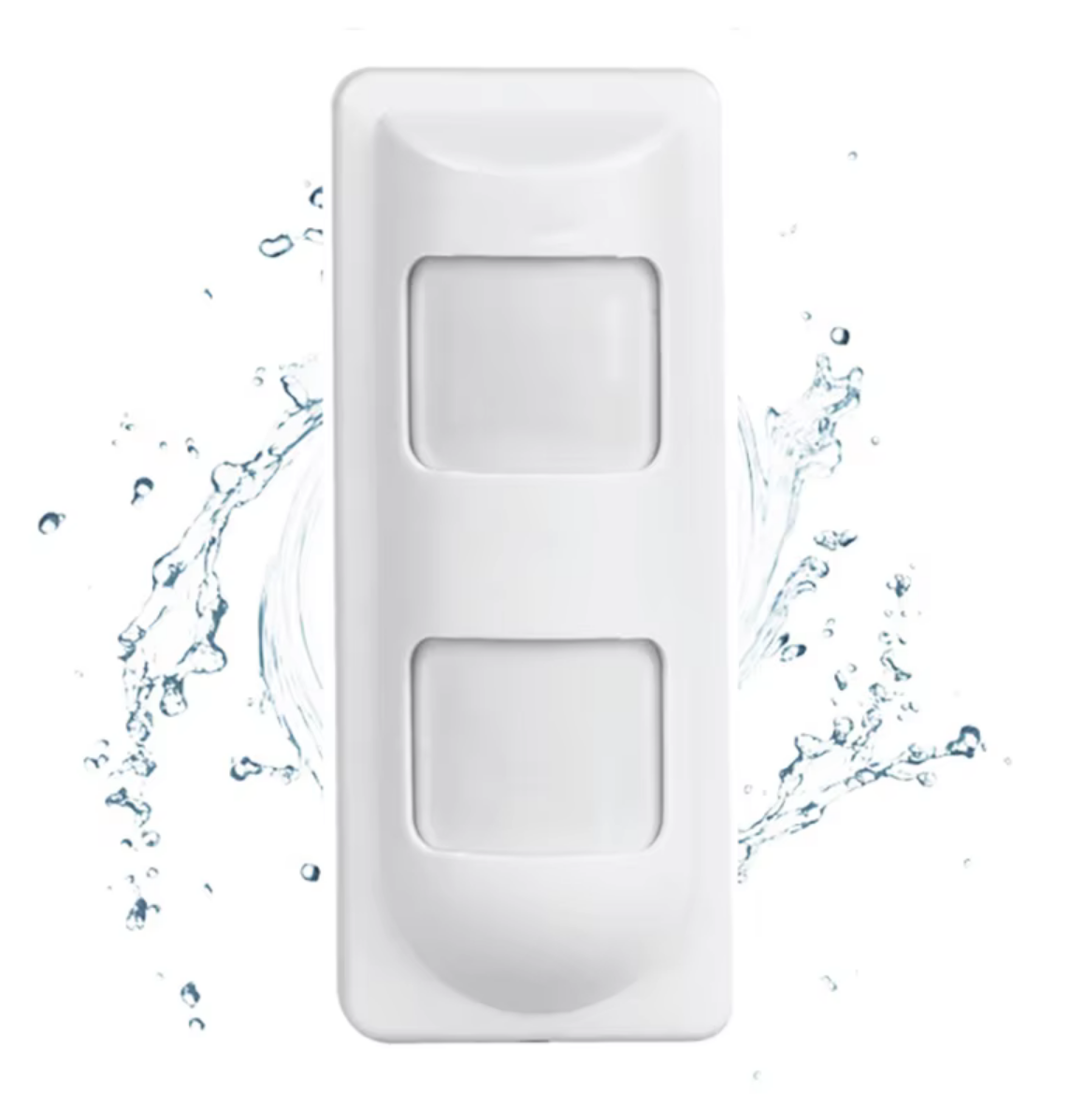

SF-40D is a special three-tech (PIR+PIR+MW) complex detector for outdoor intrusion. Can offer 3 different detection modes on 2 sensitive grades in order to choose the best detection way for spot environment and gets the best rate between the best detection ability and the minimum false alarm rate. With normal “AND”and “OR” modes, this wired outdoor detector also has “EI” mode to avoid the damage of dopes spraying on the lens. Its unique water-proof design totally fit for outdoor security installation. It also has anti-masking automatic setting and alarm type memory. Fit for commercial/residential area, factory,hotel,bank, apartment, villa,farm etc...
Feature:

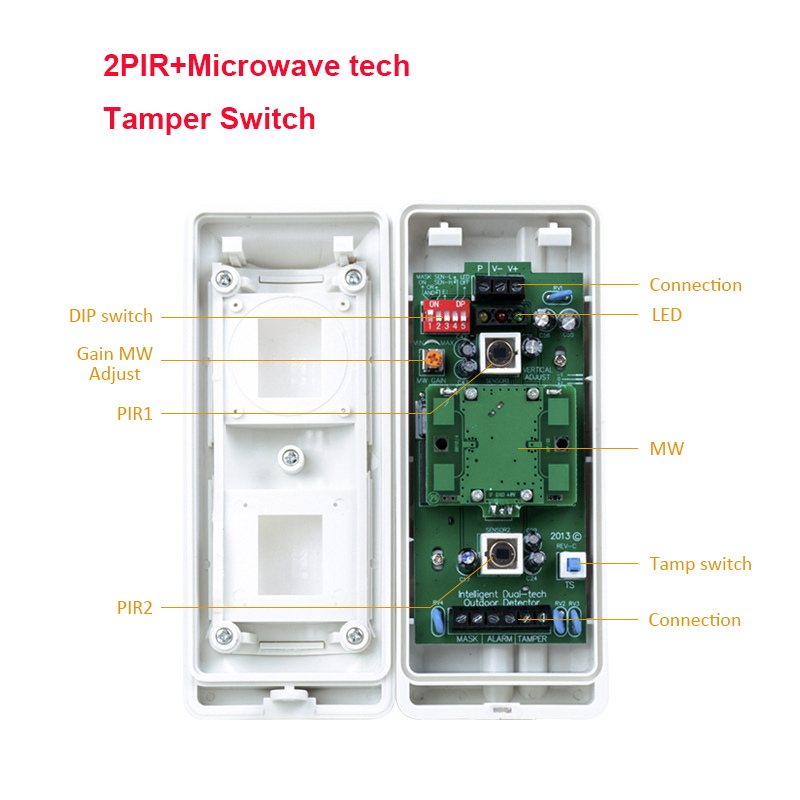

-Two PIR and MW detection tech
-Automatic setting of anti-masking
-Microwave synchronization
-Detection mode: EI-OR-AND
-Detection sensitivity can set high or low
-Anti white light
-Anti-pet ≥25kg
-Alternative Led ON/OFF
-Micro-strip MW with pulse transmission
-18 beams Fresnel lens with down-view window on its 4 planes
-Air-proof optical parts
-Total view:100°, Monitoring scale: 12m*12m
-90° horizontal adjustment , 30° vertical adjustment.

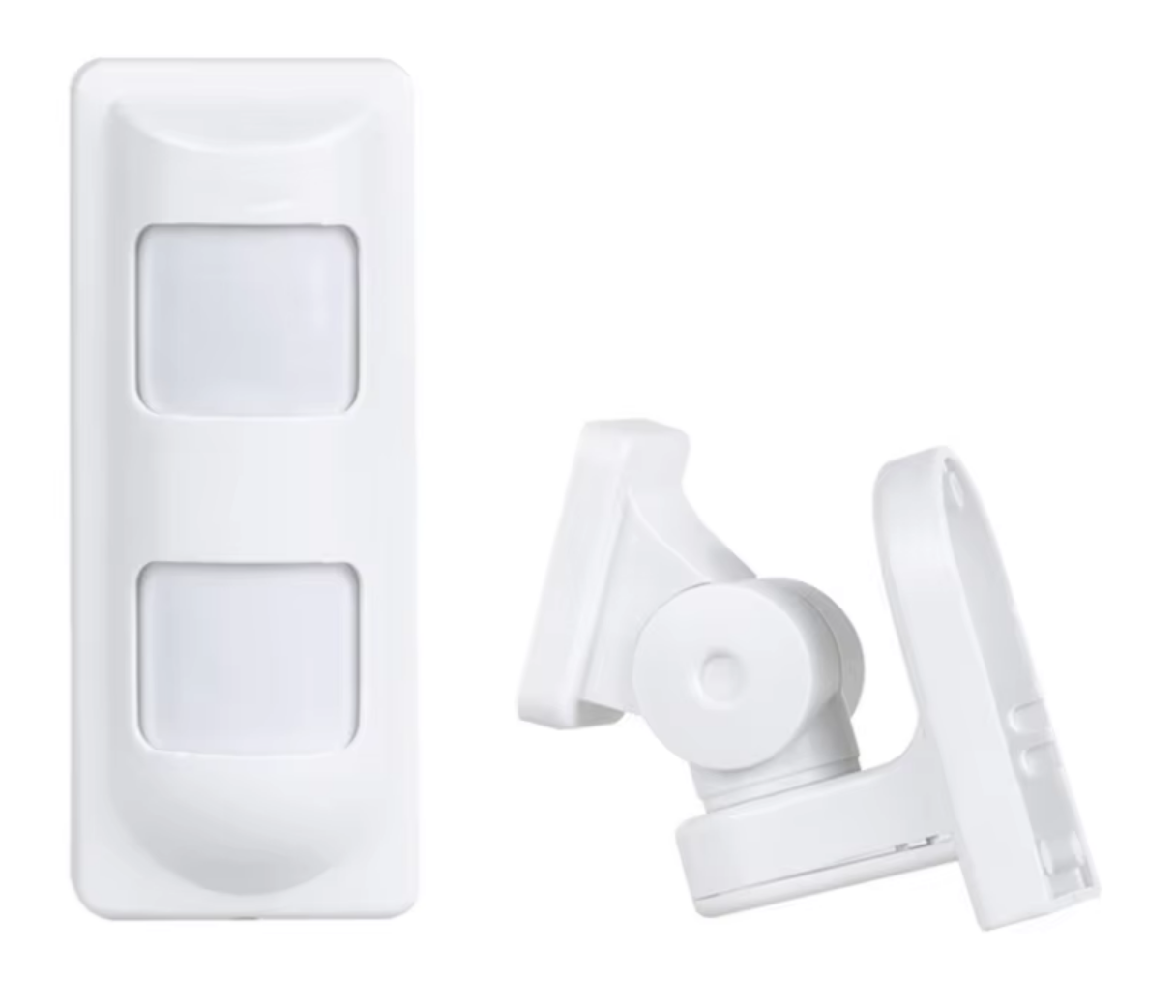

-Multi-direction bracket fit for corner/wall/ceiling mount
Parameter:
Operation voltage current : 9-16V/DC 25mA
Detection distance: 12m@100°
Installation height ： 1.5m-2.4m
MW frequency： 10.525GHz
Sensitivity ： Low or High for option
RFI/EMI protection： >30V/m 500MHz
Alarm output： 200mA/24V
Anti-mask /trouble output: 100mA/24V
Tamper output: 300mA/24V
Operation temperature : -10°C～+55°C
Operation humidity: 5%-95%(RH)
Anti white light : >10000LUX
Operation mode: Dual-tech or single-tech alarm modes for option
Detection speed: 0.2m/s to 3.5m/s
Pet immunity: 25Kg (for pet friendly type sensor)
