Receiver:
Power Source: 12V - 24V DCWorking current: 120mA max
Maximum Range: 50/100/150/200/250m
Wavelength: 940nm
Induction speed: 50ms
Alarm output: Relay output NC NO
Optical axis adjustment: Horizontal 360° (± 180°), vertical 90°.
Size: 499*76*71mm
● Digital frequency conversion function. Adopting the best-in-class 4-band frequency conversion technology, the product is applicable for long-distance and stacked installations, which has completely overcome the industry challenge of mutual interference for the installation of infrared through-beam photoelectric detectors under complex conditions; we use digital photoelectric technology.

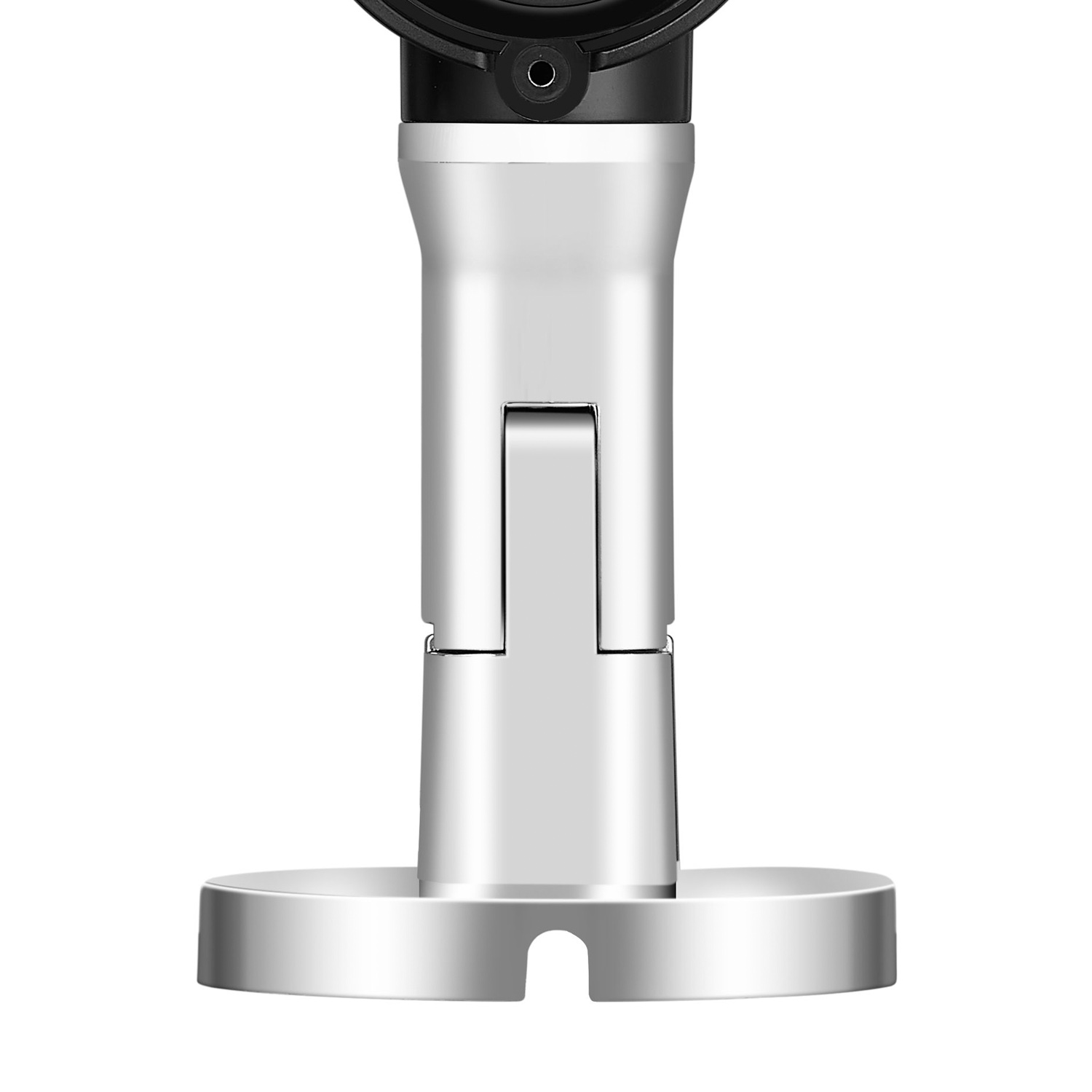

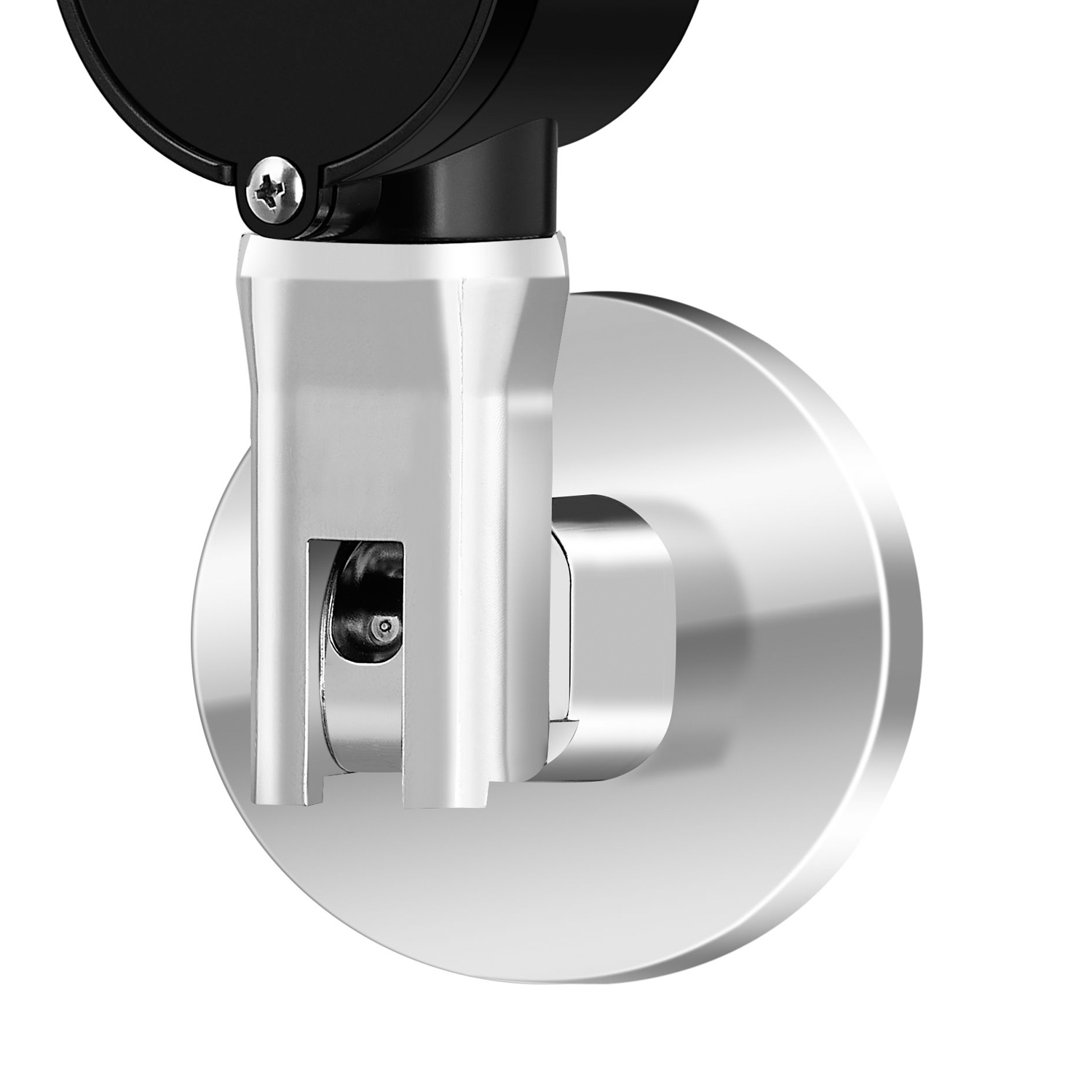

● The product has simple design and an installation bracket for easy and convenient installation.
● Indicators for specific modes offer a simple and accurate optical calibration method;
● The product is designed with a secondary processing function of infrared signals (which can compare favorably with AGC function). It ensures over 90% power redundancy, and can easily handle various adverse weather conditions such as wind, rain, frost, snow, fog, tide, direct sunshine, etc.
● Transmission and reception are controlled by the CPU-powered control circuit. High-power photoelectric transmission and reception tubes, as well as low-power digital frequency conversion and processing technology reduce false alarms and eliminate missing alarms; Wide voltage design completely solves the problem of circuit voltage drop. The power supply voltage ranges between DC12~24V and AC9-16V, facilitating integrated power supply;

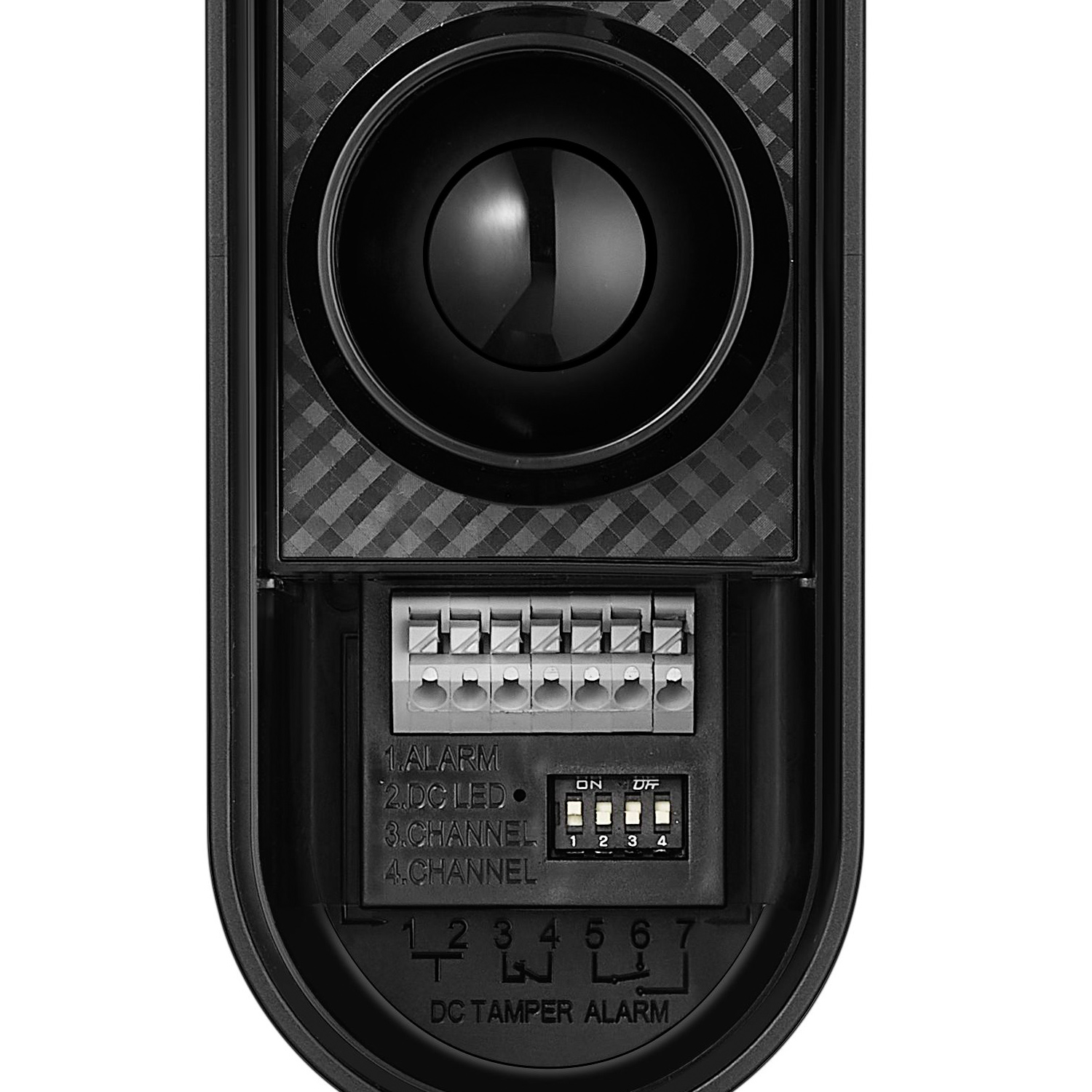

● Form-C relay output for multiple applications;
● The tamper switch is on when the casing is removed;
● Highly water-resistant: IP65 rating;
● Wide-angle optical calibration range: Horizontal 360° (± 180°), vertical 90°.
●A brand-new structural design enhances the anti-interference against sunshine inference.
