PlR Sensor

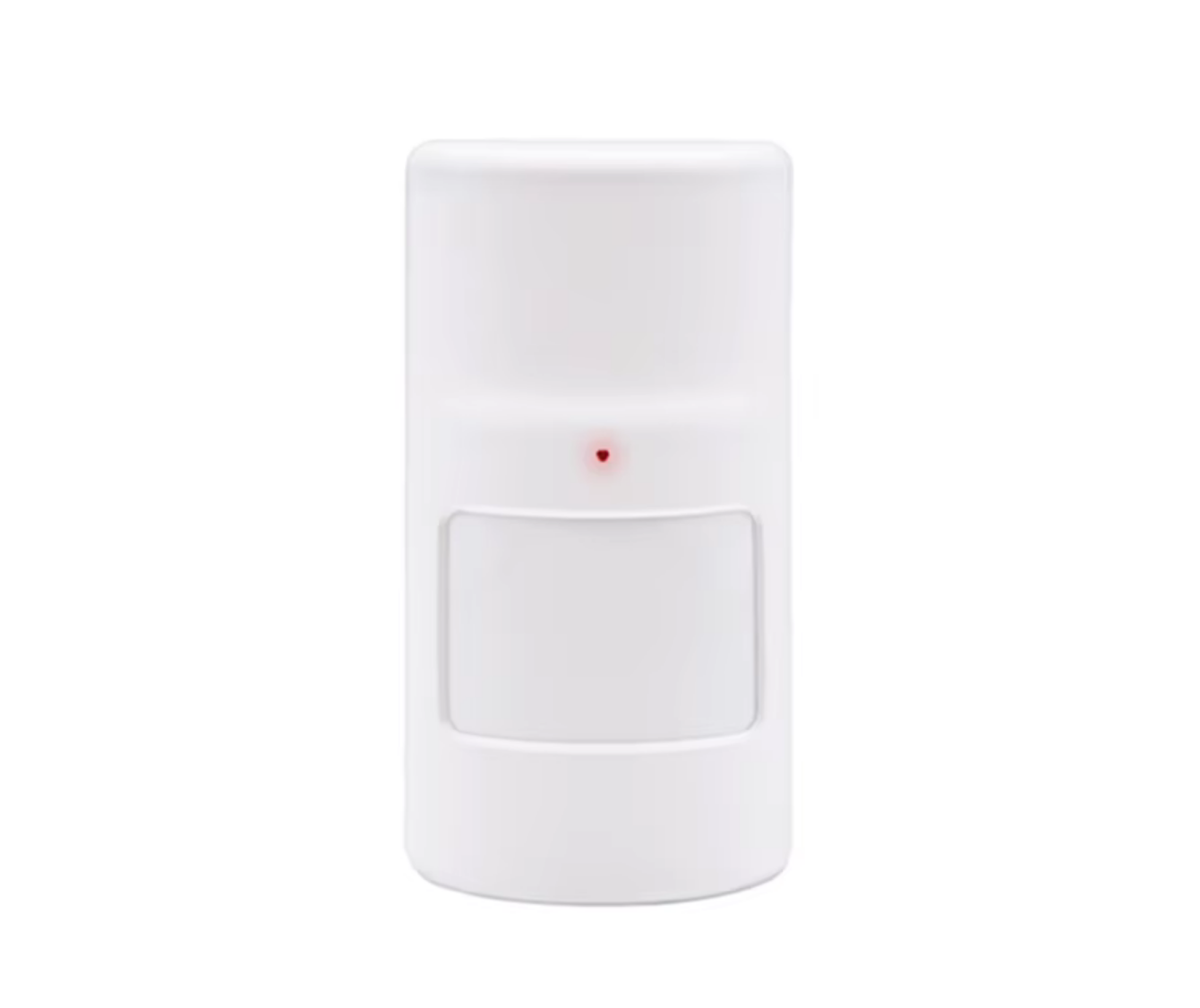

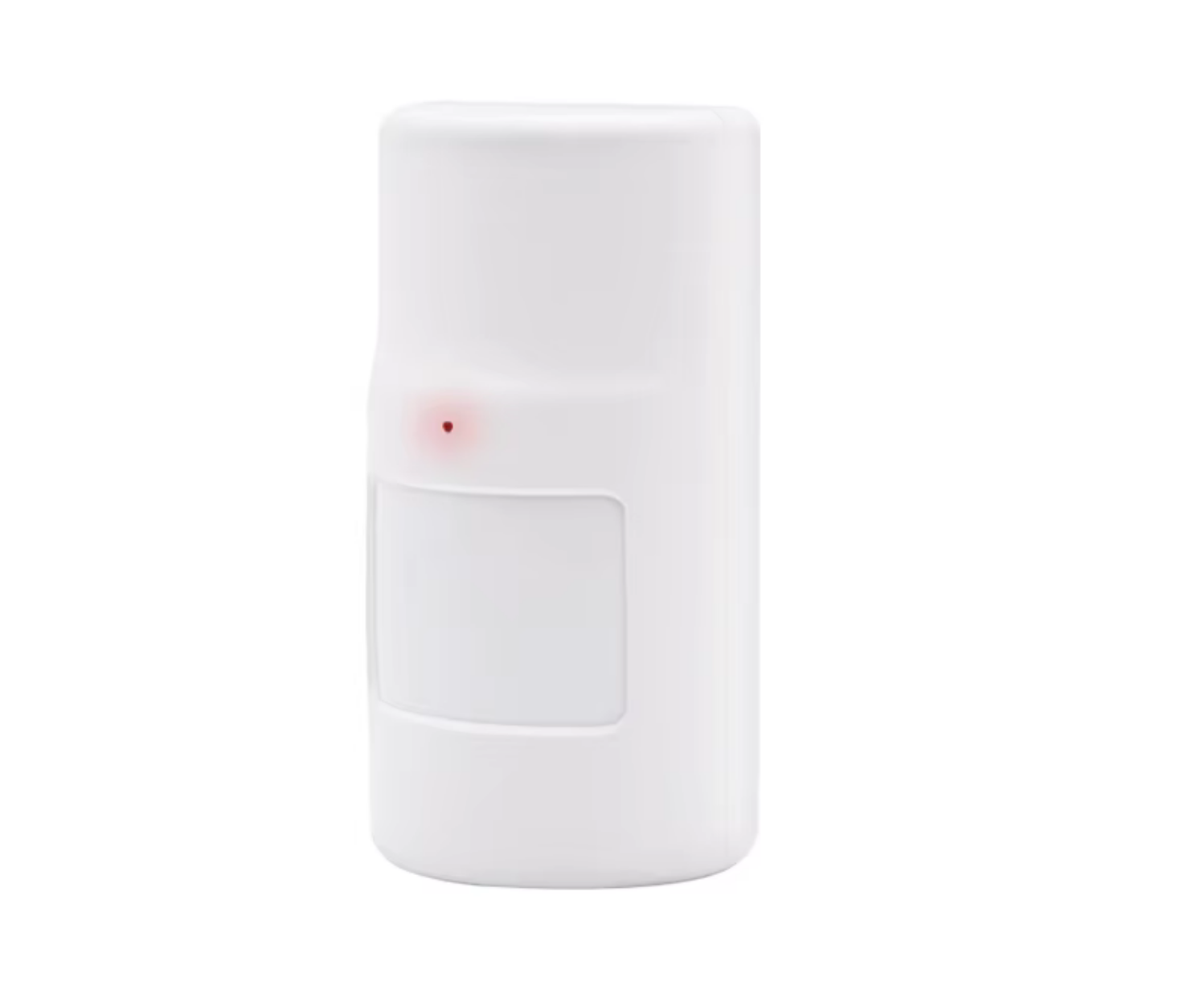

SF-87R Home Alarm High Quality Wireless Pir Motion Sensor Anti-tamper 10 Meter 110 Degree Detecting Range for Burglar Intrusion System

Product Attribute

Model Number:SF-87R
Power Supply Voltage:DC9V
Product:PIR Detector
Detecting Distance:6-10M
Material:ABS fire resistant plastic
Detection angle:110°
Installation environment:Indoor installation
Wireless frequence:433MHz
Alarm Method:Wireless
Support pet:No

Introduction:
This motion detector has elegant design and acts very stable. Can immune to small animals so can avoid false alarm. Sensitivity can set as high or low. You can enable or disable the low battery alert function by easy setting. This detector is suitable for housing estate, villa, factory, warehouse, office building and so on

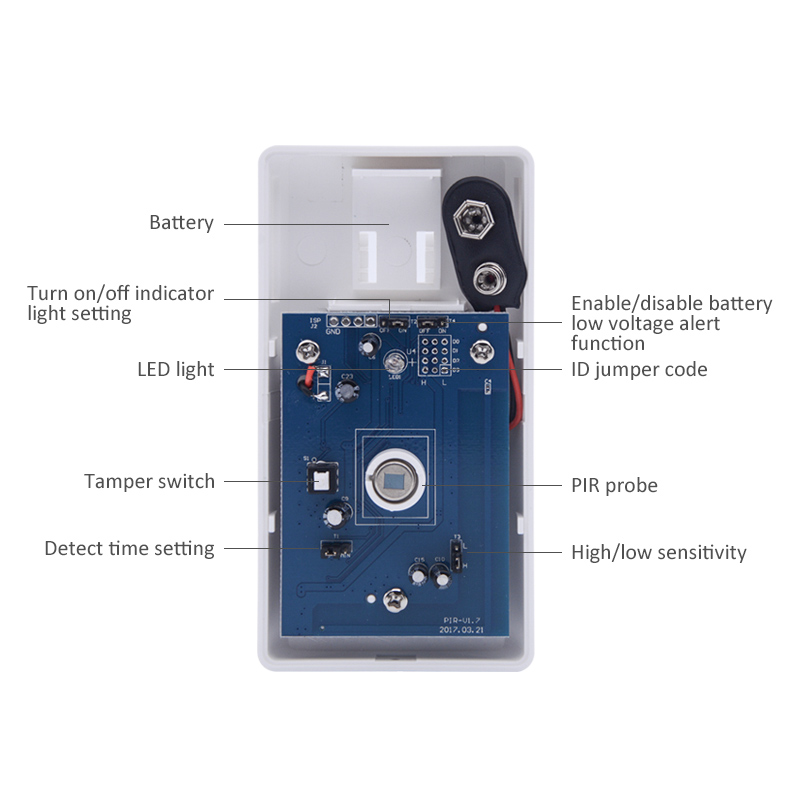

Feature:
1.MCU micro system control
2.Pyro electric infrared detection function
3.Support tamper switch
4.Support battery low voltage alert function
5.Pet-immunity for small animals
6.Wireless RF transmitter, EV1527
7.LED signal light can be turn on/off

Specification:
1. Signal light color: orange
2.Battery: 9V 6F22(included)
3.Standby current: 23UA
4. Alarm current: 23mA

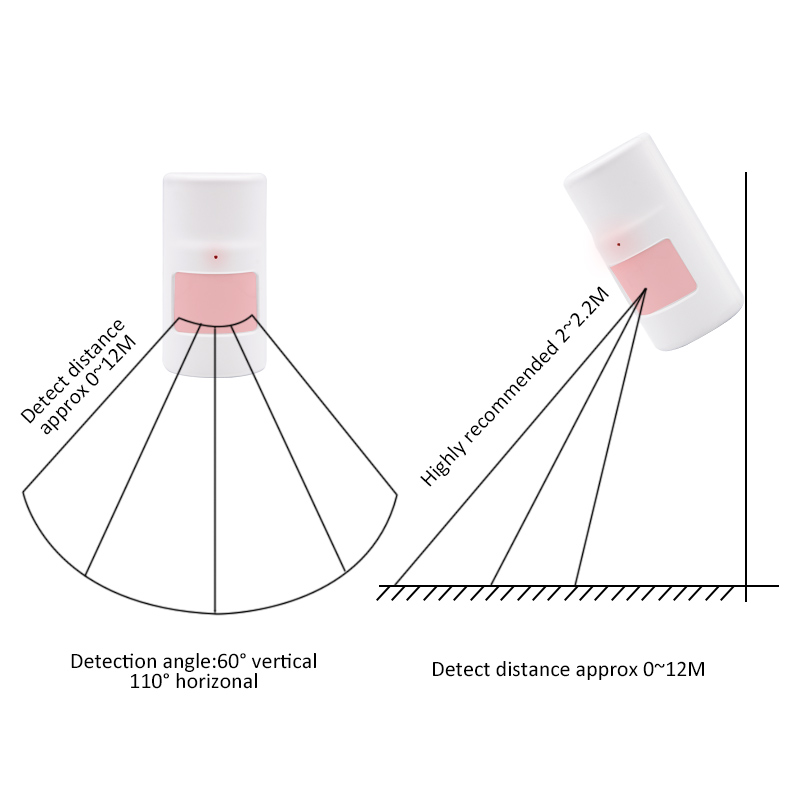

5.Installation height: 1.7-2.5m (suggest 2.2M)
6.Detect range : 10m
7.Detect angle: 110°
8.Sensitivity: high/low
9.Emission distance : 100M (open area)
10. Humidity: ≤95% RH(no freeze)
11. Working temperature: -10℃~55℃
12. Anti-EMI: 0.1 - 500MHz/30V/m
13. Frequency: 433MHz

Package Content:

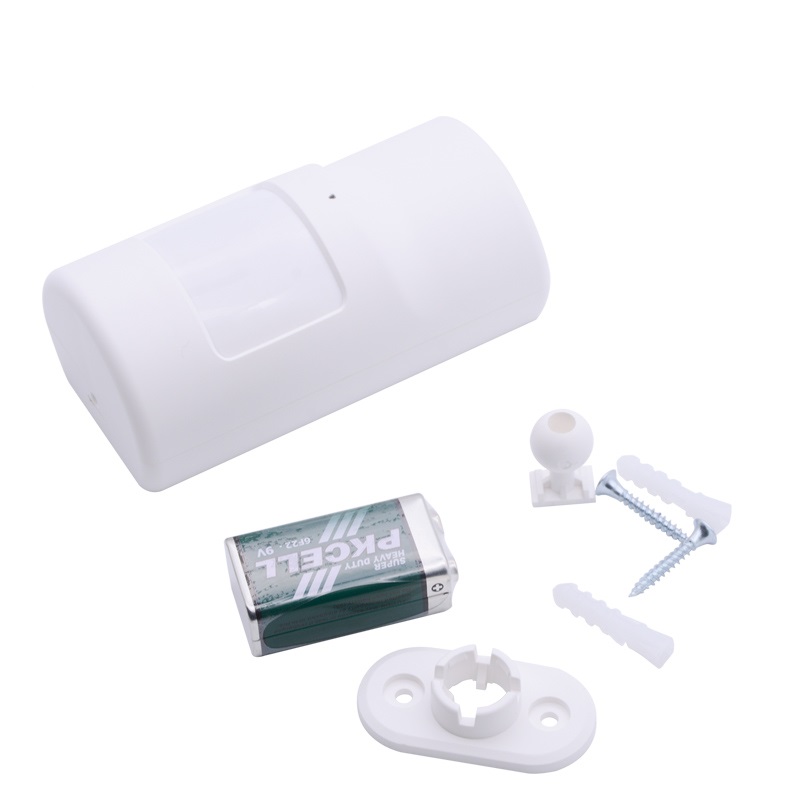

1pc Wireless PIR Motion Sensor Detector(Battery, Bracket, Screws included!!!)
