PlR Sensor

SF-40W Outdoor Solar Smart Dual Infrared Detector Outdoor Waterproof Infrared Alarm Wireless Remote Reminder

Product Attribute

Model Number:SF-40W
Power Supply Voltage:DC9V
Product:PIR Detector
Detecting Distance:8-12M
Material:ABS fire resistant plastic
Detection angle:110°
Installation environment:Indoor installation
Wireless frequence:433MHz

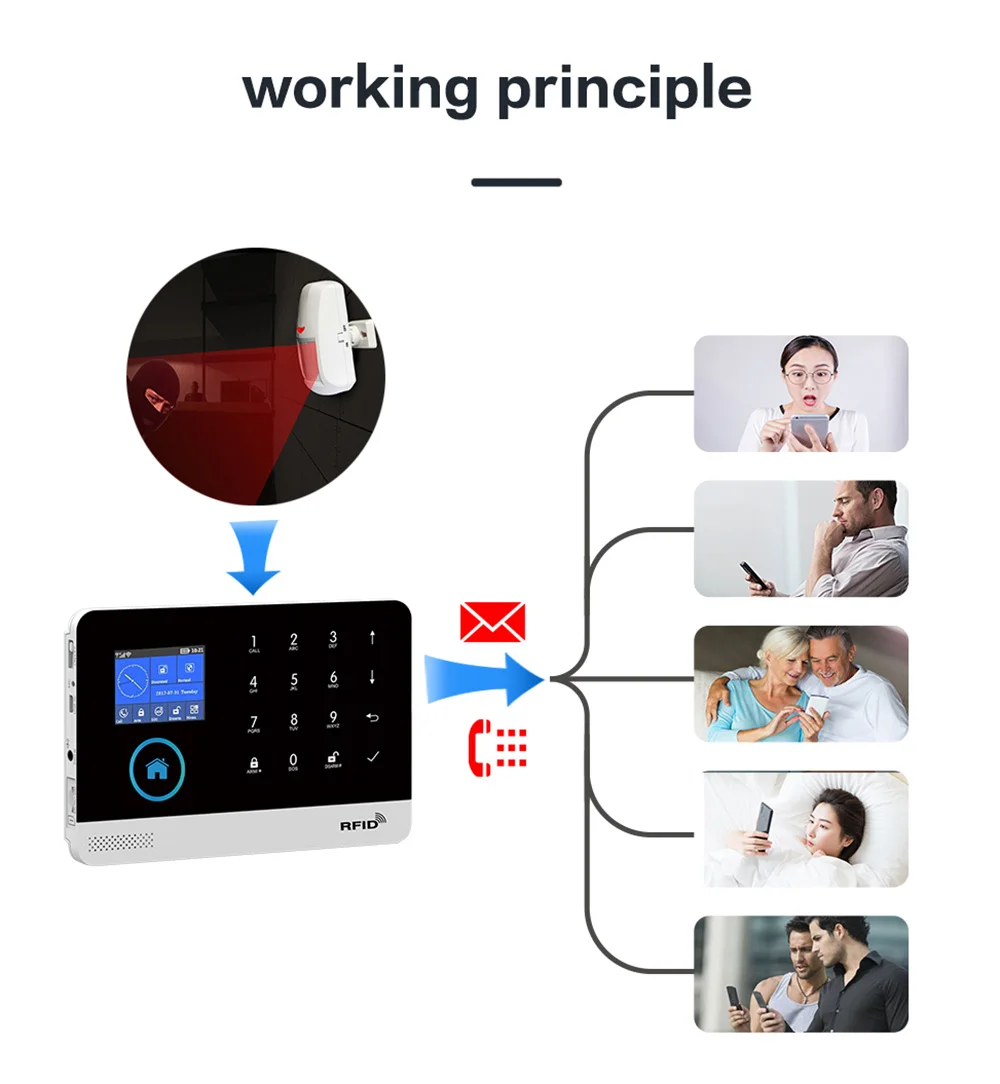

Alarm Method:Wireless

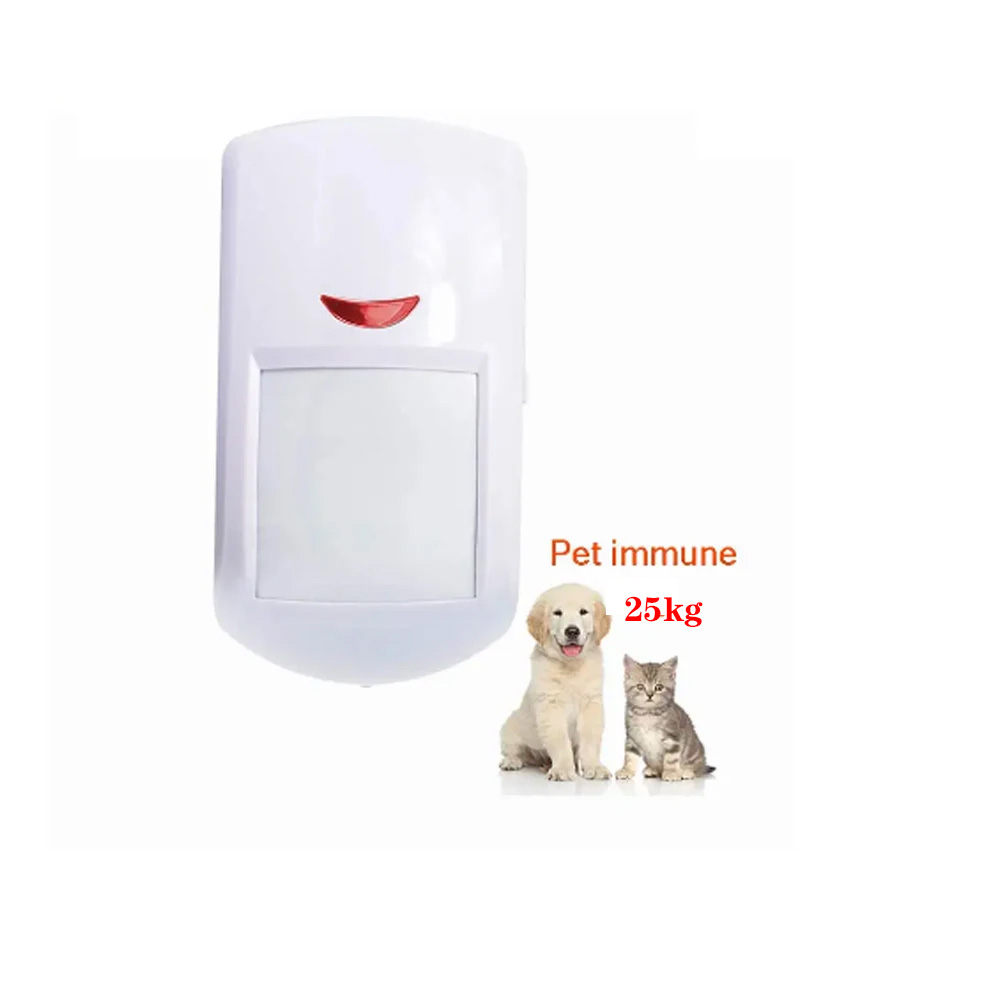

Support pet:pet immunity(pet lens):25KG

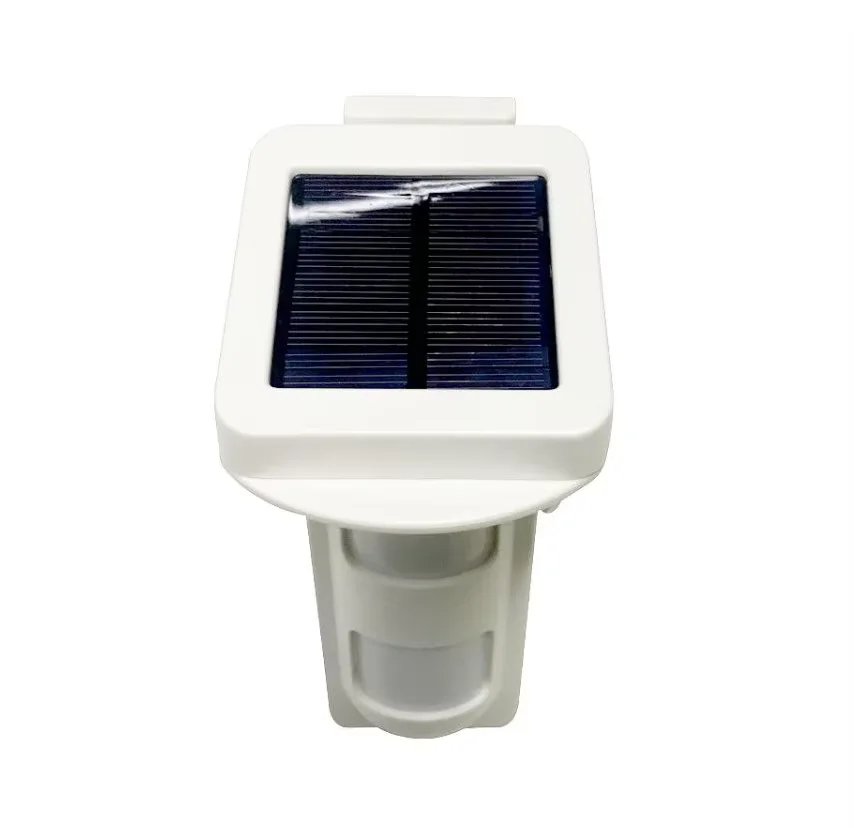

Product name	Wireless Infrared Outdoor Powered By Solar Panel Dual- PIR Motion Detector
Operating voltage	12VDC(Powered up by solar panel)

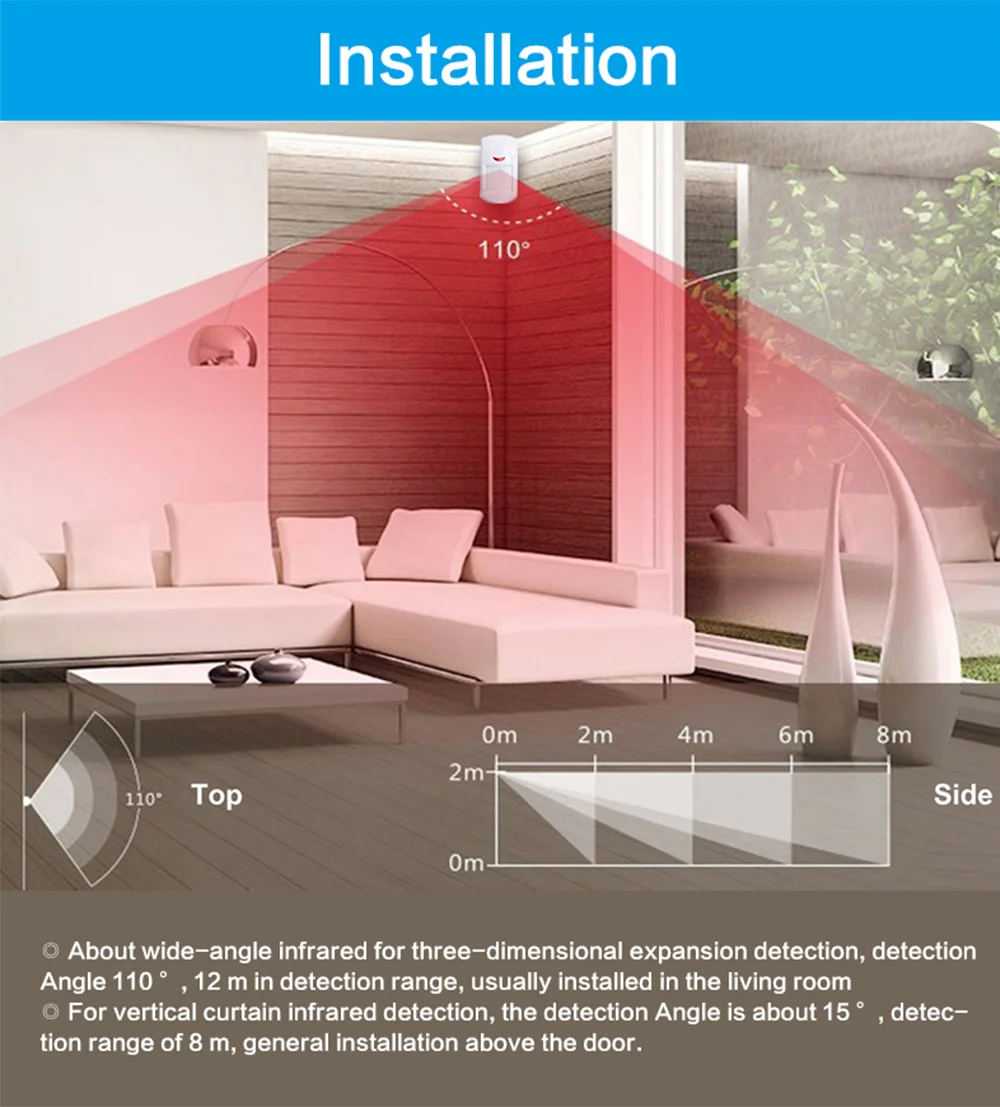

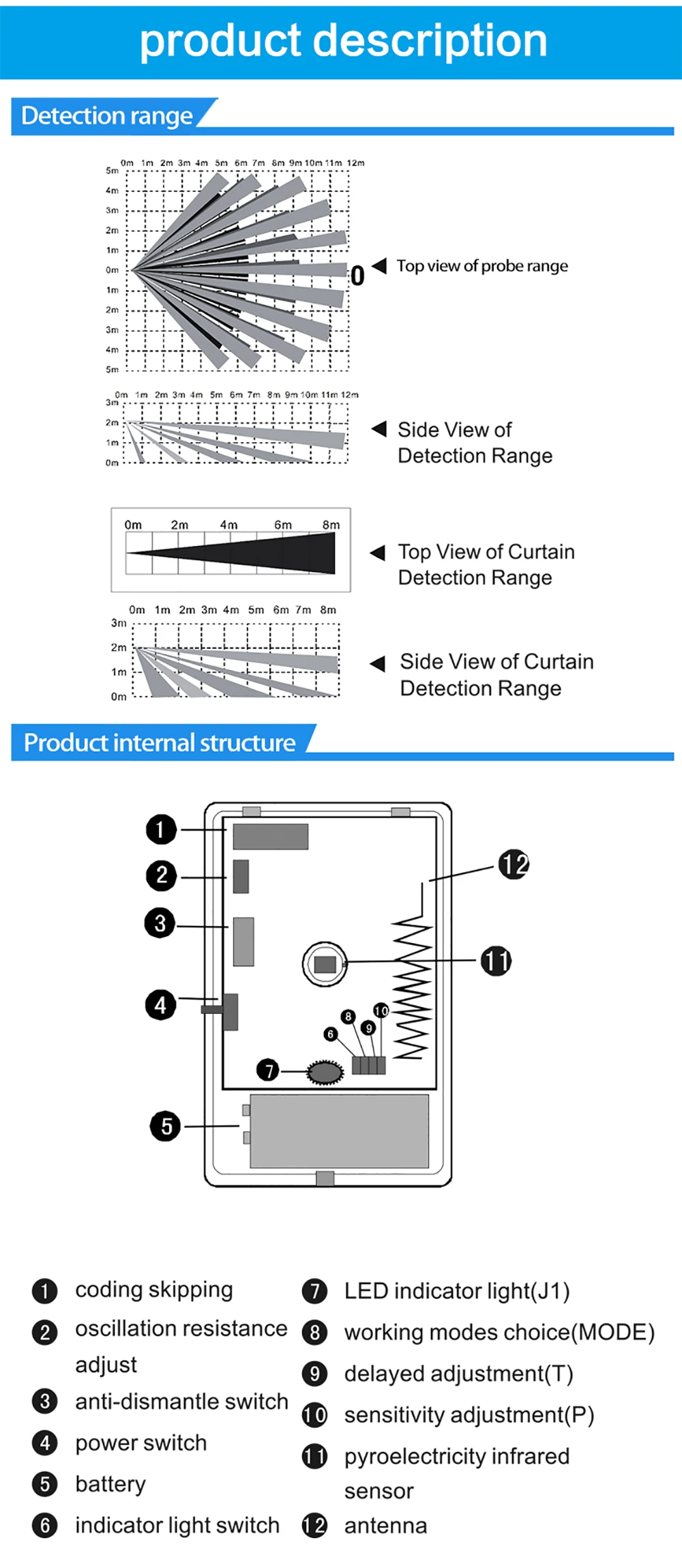

Dectection range	vertical angle 60 degree,horizontal angle 110 degree,12m at 20℃
Standby current	less than 100uA
Alarm current	less than 30uA
RF immunity	>30V/m 0.1-500MHz
Sensitivity	>3300V/W
Noise(Vp-p)	<200mV,(mVp-p) (25℃)
Anti white light	>10000 Lux
Transmitting Freq.	433.92MHz
Transmitting distance	minimum 100m(in the open area)
Pet immunity	=25kg
Temperature range	-20℃~+55℃
Relative humidity	95%(25℃)

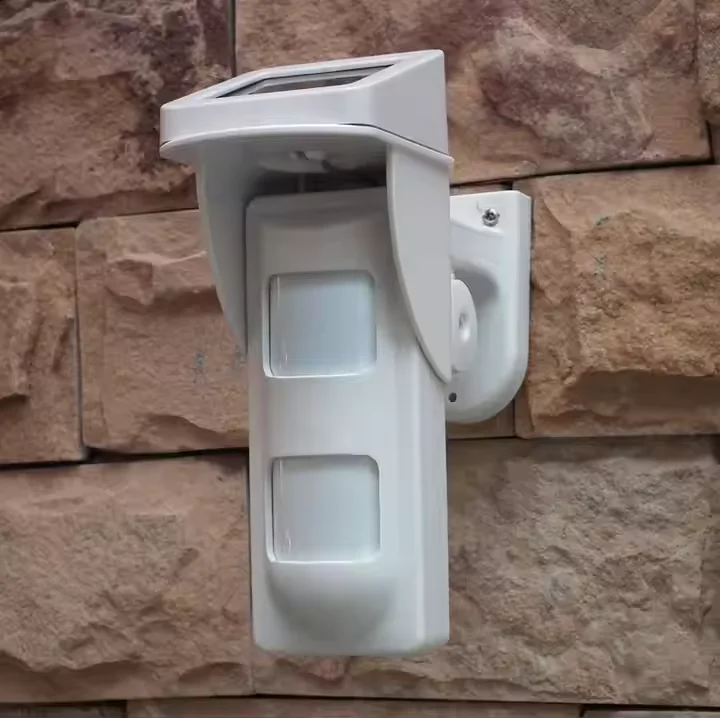

Installation mode	Wall mounted by bracket
Backup battery	3*1.2V AAA Ni-MH Rechargeable battery,can last up to 8 days.
Installation height	1.8~2.4m
Detection speed	0.3m/S~3.2m/S
Housing	High-impact ABS

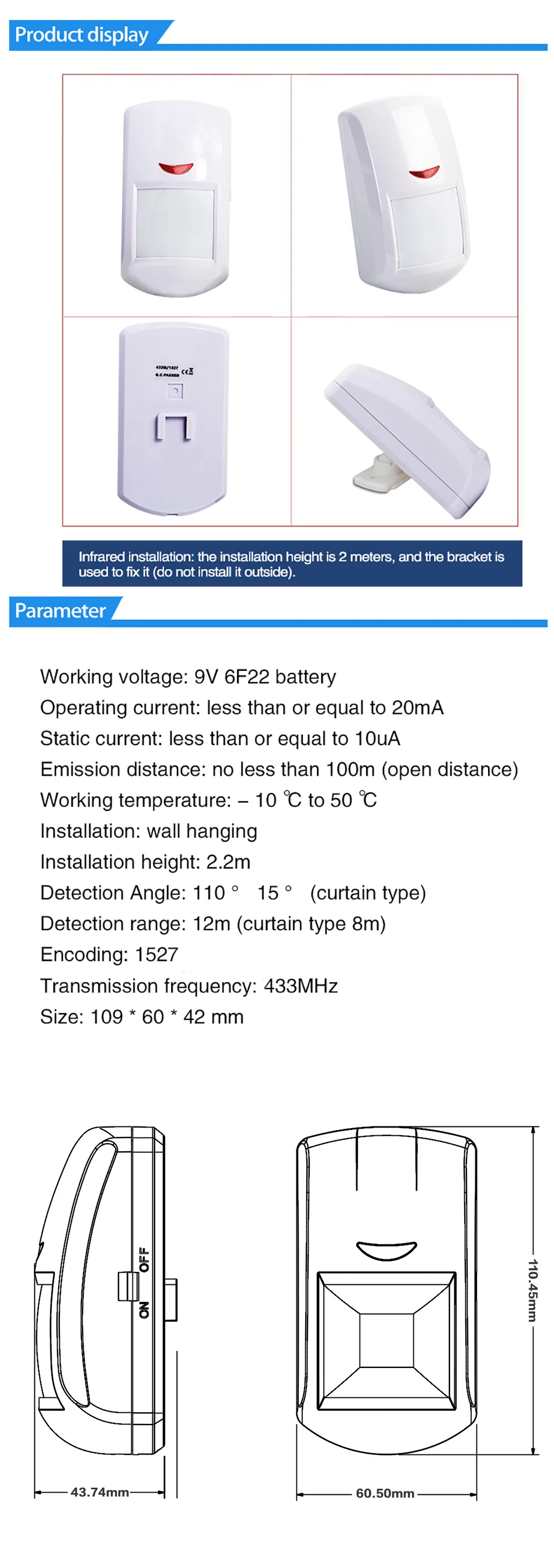

Dimensions	1606550.5mm(HWD)
Applications	For outdoor applications,perimeter protection alarm systems.
