ABI-4100
BONLOR
DC 12-24V
4 Beam
30-100m
ABS
Infrared LED
Product details
Certificate
Comments
Contact Supplier
Type:
Infrared beam barrierOptical frequency 4 beams infrared barrierCE and ROHS compliant security alarm beam
Product Description:

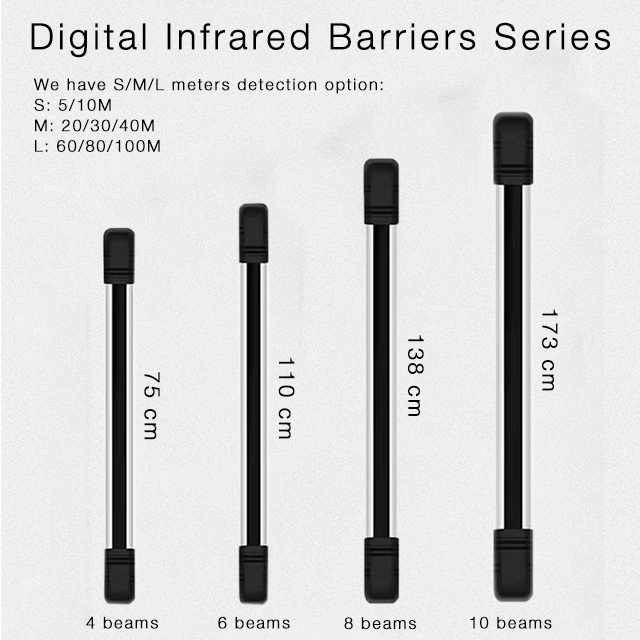

4/6/8/10 beam for option

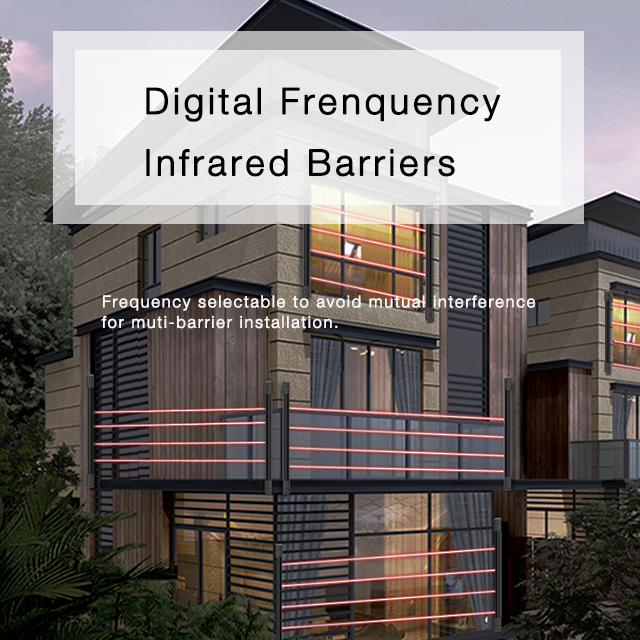

4 channel frequency selectable, avoid interference when muti-barriers installation
High signal stability and accuracy with MCU circuit design

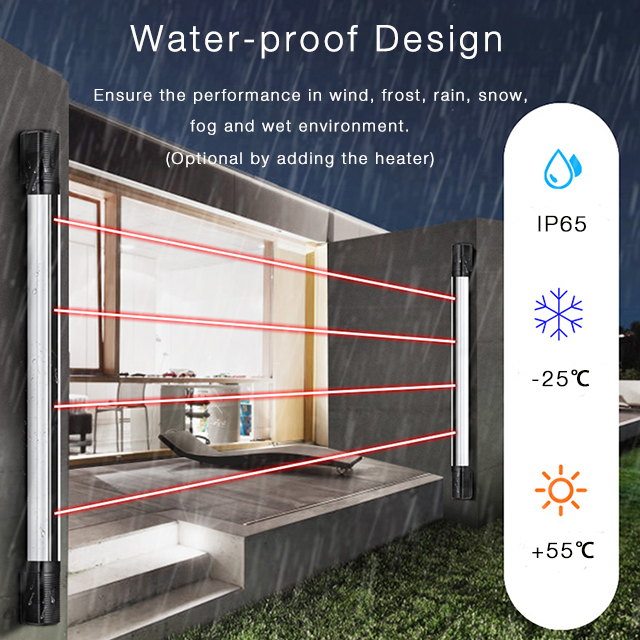

Waterproof grade IP65
Demist function is available by adding the heater to ensure it works in cold environment

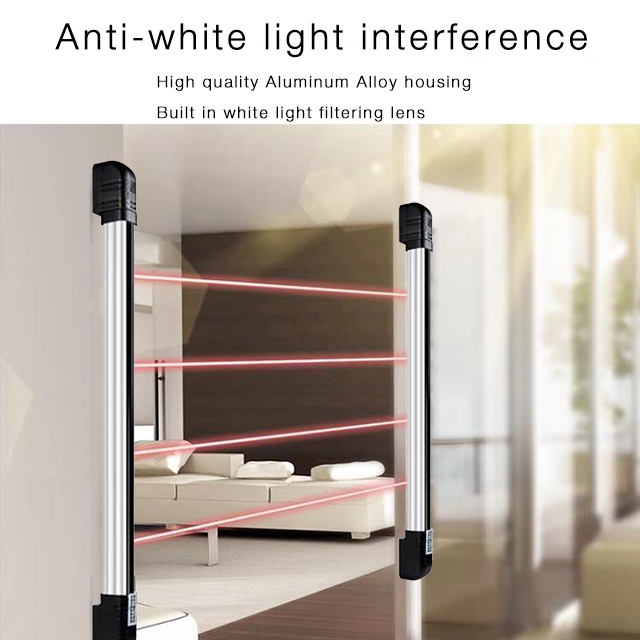

Built-in automatic light filtering up to 50000 lux, good performance against direct sunlight, completely against fluorescent and car light
UV protection housing
Characteristic:
*Without Synchronous cable
*NC/NO relay output
*Easy wire connection without opening the whole housing
*The interval between two adjacent beams is 15cm for reducing false alarm
*Tamper switch open when remove case
*Pet immunity, insect prevention,current limiting protection

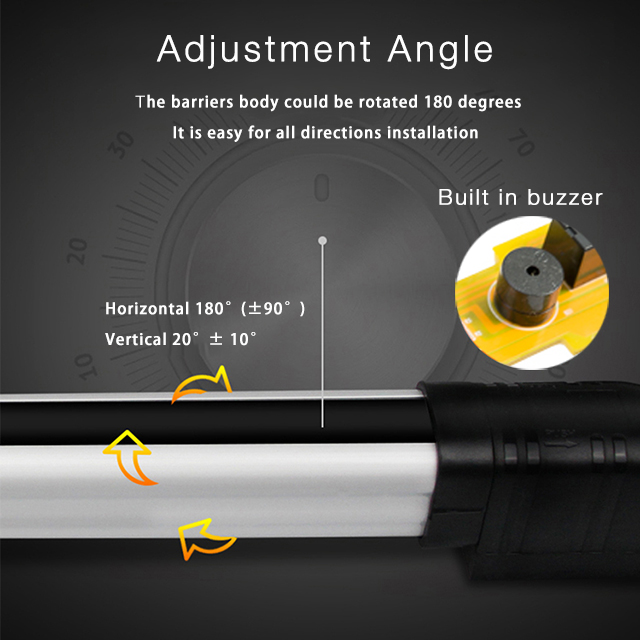

*Angle adjustable horizontal and vertical

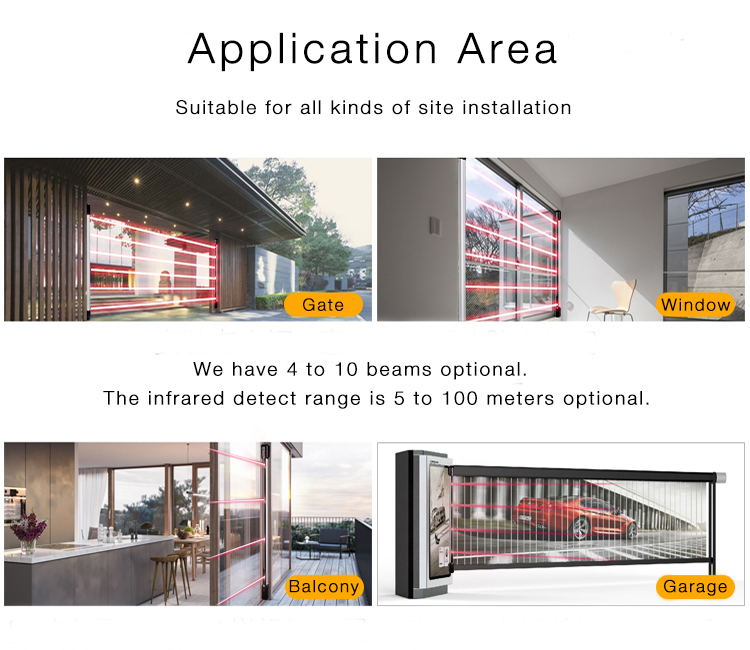

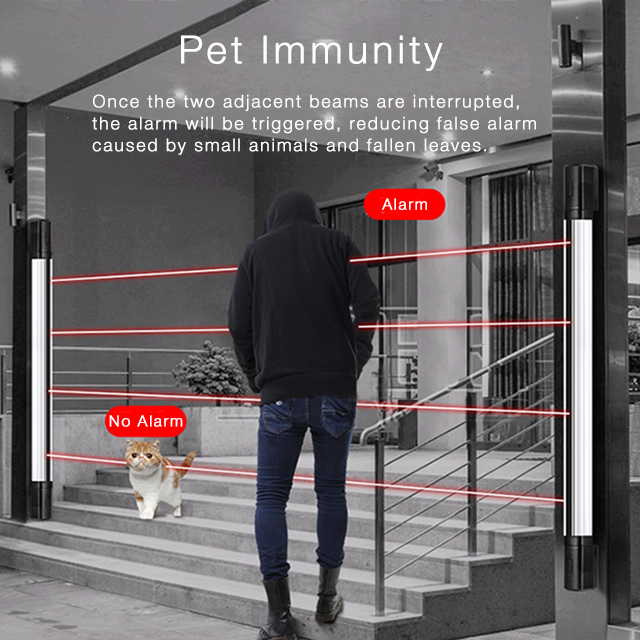

The infrared barrier is commonly used for window or door protection. Without Synchronous cable, it is easy for installation. Once the two adjacent beams are interrupted, the alarm will be triggered, reducing false alarm caused by small animals and fallen leaves. The barrier are waterproof designed, insect prevention. With the advanced design, the product is easy for 180 degree rotation.
